Cables

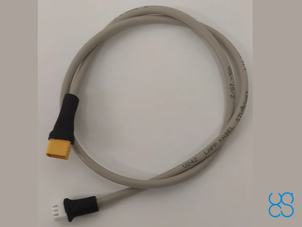

Cable to provide power from UgCS SkyHub to SENSYS MagDrone R3 magnetometer eliminating the need for an additional battery.

Especially convenient when used in combination with a DJI M300 RTK drone with hot-swappable batteries.

The cable has an XT30 plug connector for the UgCS SkyHub side and a connector for the MagDrone R3 side.

Note that the output power selector on SkyHub should be set to 12V to provide power for MagDrone R3.

Cable to feed Geonics EM61Lite from the payload power connector of SkyHub 3rd generation.

Connectors:

- XT30 for the SkyHub

- MS3112E8-3P for EM61Lite

Cable to connect UgCS SkyHub 3rd generation to DJI M210/M210 V2/M210 V2 RTK drone.

Connectors:

- Molex 90123-01304 3-pin receptacle for the drone
- Switchcraft W16982-7SG-P-518 connector for SkyHub

Cable to connect UgCS SkyHub 3rd generation to DJI M300 RTK drone.

The cable has 2 connectors for the UgCS SkyHub:
- XT30 socket connector (power)
- Switchcraft W16982-7SG-P-518 connector (signal)

Cable to connect UgCS SkyHub 3rd generation to DJI M600Pro drone.

Also suitable for custom drones with DJI A3 autopilots.

Connectors:

- Switchcraft W16982-7SG-P-518 for SkyHub side

- Molex 90123-01304 4-pin receptacle for A3 side

Cable to connect UgCS SkyHub 3rd generation to Telem port of Pixhawk autopilot.

Connectors:

- Switchcraft W16982-7SG-P-518 for SkyHub side

- JST 6-pin receptacle for Pixhawk side

Cable to connect devices (like Geonics EM61Lite) with an RS232 interface to SkyHub 3rd generation.

Connectors:

- D-SUB male 9-pin connector for the device
- Switchcraft W16982-7SG-P-518 connector for SkyHub

Cable to connect UgCS SkyHub 2nd generation to DJI M600Pro drone.

Also suitable for custom drones with DJI A3 autopilots.

Connectors:

- Lemo FGG.0B.303 for SkyHub side

- Molex 90123-01304 4-pin receptacle for A3 side

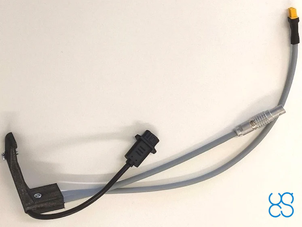

Cable to connect UgCS SkyHub 2nd generation to DJI M300 RTK drone.

The cable has 2 connectors for the UgCS SkyHub:
- XT30 socket connector (power)
- Lemo FGG.0B.303 connector (signal)

Cable to connect UgCS SkyHub to the power output connector of the drone to consume electricity from the drone's main battery.

Compatible with UgCS SkyHub of 2nd and 3rd generations.

Used with DJI M600 and M210 series of drones.

Connectors:
- XT30 socket for SkyHub side
- XT30 plug for drone side

Data cable to connect UgCS SkyHub 3rd generation to LightWare SF30/D rangefinder (altimeter).

Connectors:

- Switchcraft W16982-7SG-P-518 for SkyHub side

- Molex Pico-Lock 504051 7-pin receptacle for rangefinder side
